SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors
Premium Products
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors
1
2
3
4
5
6
Place of Origin :Guangdong, China
Brand Name :Theodoor
Model Number :FM-3515S-L
MOQ :10
Price :$399
Mounting Type :Wall / Window Mount

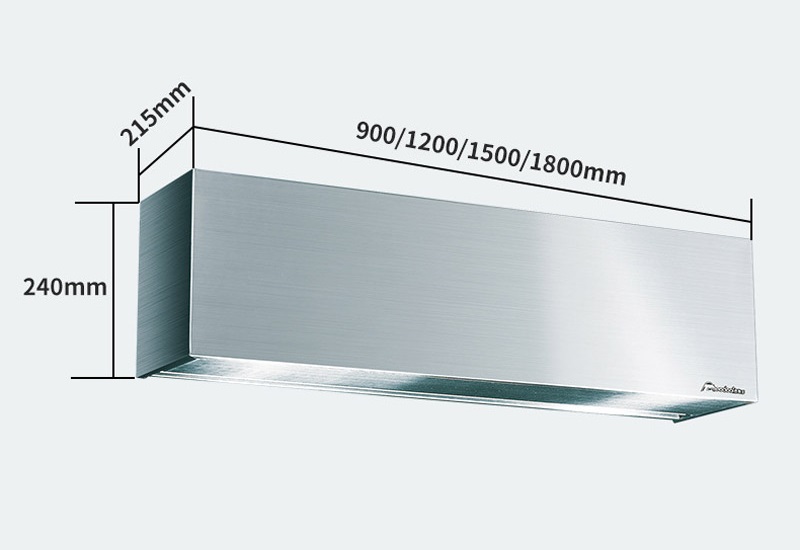

Dimension :1500x215x240mm
Weight :25 KG
Material :Stainless steel 304
Air speed :16-20m/s
Fan type :Centrifugal Fan
Available sizes :900, 1000, 1200, 1500, 1800mm
Speed settings :2-speed
Voltage/Frequency :220v/50Hz
Input power (Hi) :380W
Input power (Lo) :350W
Air flow (Hi) :1900 m3/h
Air flow (Lo) :1500 m3/h
Noise level (Hi) :55 dB
Noise level (Lo) :52 dB
Contact Now
Product Description
Stainless Steel SS304 FM-3515S-L Residential Air Curtain For 2.5-4m Door
Features:
1) Switch 2) Two speeds 3) Stainless steel cover 4) Centrifugal type air flow 5) Applications: 3-4m doors 6) Available size: 900mm, 1,000mm, 1,200mm, 1,500mm, 1,800mm
Specifications:
Model
Size
(mm)
Volt./ Freq.
Input power(W)
Air flow
(m3/h)
Air speed
(m/s)
Noise
(dB)
N.W(kg)
Hi
Lo
Hi
Lo
Hi
Lo
FM-3509S-L
900x215x240
220v/50Hz
230
200
1100
900
13-16
52
49
14
FM-3510S-L
1000x215x240
250
220
1200
1000
52
49
15
FM-3512S-L
1200x215x240
290
260
1500
1200
53
50
18.5
FM-3515S-L
1500x215x240
380
350
1900
1500
55
52
25
FM-3518S-L
1800x215x240
450
420
2200
1800
57
54
30
FM-4009S-L
900x215x240
220v/50Hz
300
270
1400
1000
16-20
57
54
14
FM-4010S-L
1000x215x240
320
290
1550
1100
57
54
15
FM-4012S-L
1200x215x240
400
370
1900
1500
57
55
18.5
FM-4015S-L
1500x215x240
500
470
2300
1900
58
55
25
FM-4018S-L
1800x215x240
600
570
2850
2250
61
58
30

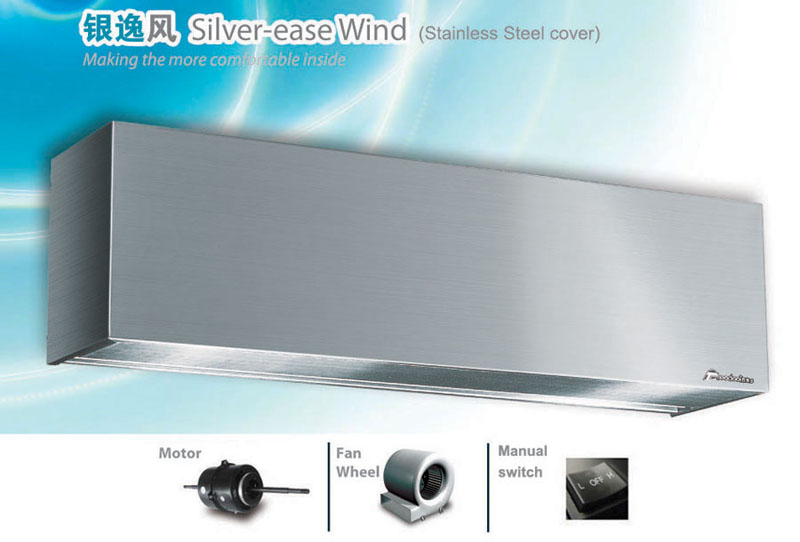

Easy clean and fireproof
Stainless steel (304) covers, stronger and rust-proof, easy clean;
Luxury materials
Low noise centrifugal turbine fan, high velocity motor and apply quality bearing. Create powerful air pressure and durable operation.
Easy operation
Air inlet from top design, with special air deflector design and air direction is adjustable.
Selectable high and lower air velocity controlled by remote control or key switch.
Application: for waiting rooms, food factories, hotel kitchens and bakeries etc.
Factory information: Theodoor Company is a professional manufacturer engaged in the research, development, production, sale and service of Air curtain, Heat pump water heater and ventilating system. We supply many series of products, suitable for different environments; with superior performance, attractive design and fine workmanship. Theodoor has gained ISO9001 international quality management system and ISO14001 Environmental management system certification. The products are qualified with CCC, CE, ROHS and UL certifications.
